Driving the box from a desk

A production desk already has a Stream Deck where vision, lighting and playback are each one button away. Crewbox being the exception makes crewbox the thing somebody has to remember to go and click — which on a show is the same as the thing that doesn't happen.

So the box answers a small HTTP surface designed for a machine: raise a tally, read what is on which stage, post a message to a channel. It is meant for Bitfocus Companion and works from anything that can make a request — a cue stack, a Node-RED flow, a shell script in a show folder.

The key

Every call carries a key. The box mints one the first time it is asked for, and prints it at the bottom of Admin → This box.

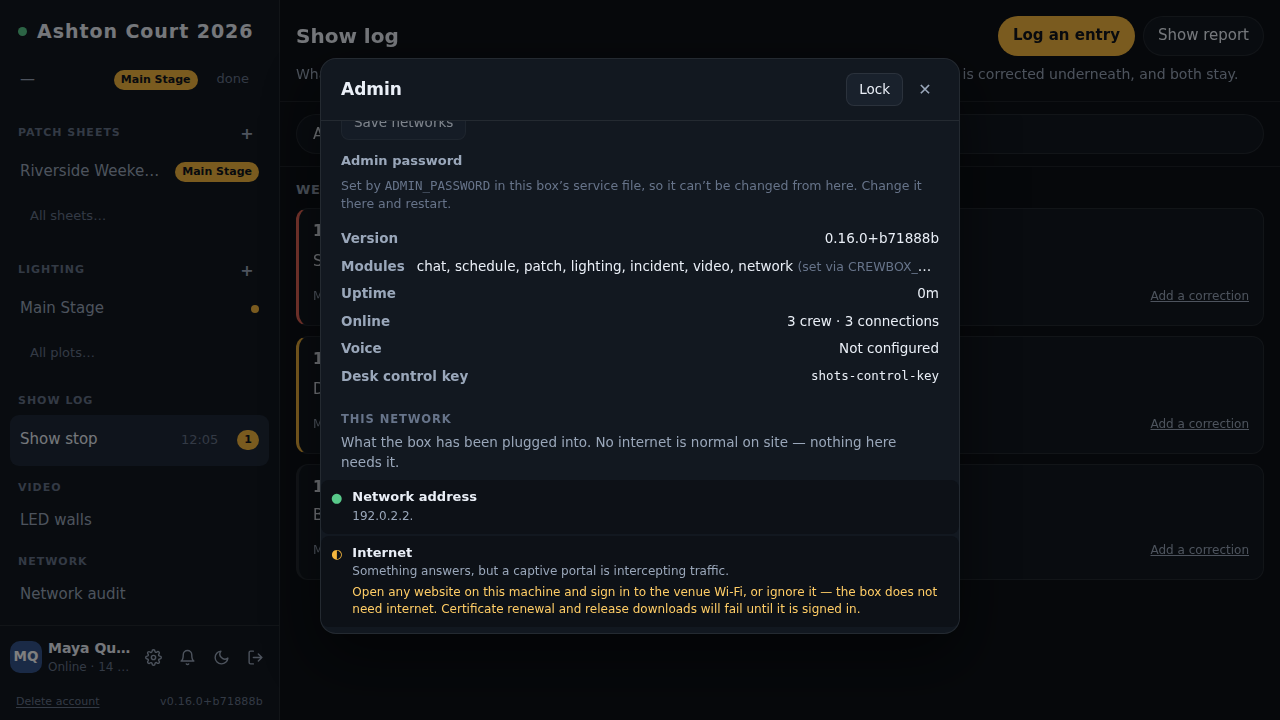

The desk control key in the admin panel

Present it either way — both are conventional and both work:

curl -H "x-api-key: YOUR-KEY" https://box.local/api/control/state
curl -H "Authorization: Bearer YOUR-KEY" https://box.local/api/control/state

This is deliberately not the admin password. The admin password is a person doing something once; the key is a machine doing something a hundred times a night, and it grants far less. Nothing on this surface can change the event, delete anything, or read a message anybody wrote.

To pin the key — so a spare box answers the buttons you already built, or so a leaked one can be replaced without touching a running show — start the box with CREWBOX_CONTROL_KEY set. The environment wins over the stored key and is never written to disk, the same rule the rest of the box follows.

Tally: who is on camera

POST /api/control/tally   { "user": "Dev Okafor" }   raise
POST /api/control/tally   { "user": null }           clear
GET  /api/control/tally                              read it back

The crew member is named the way the person building the button knows them — their name in the app. An id works too, if a script stored one. A name that matches nobody is a 404 rather than a success that lit nobody up.

Everyone's app shows a bar the moment it changes; the person named gets the loud version of it. It is raised from the desk and never from inside the app, because the person on camera is the last person who should be tapping a phone.

Bind two buttons — one that names the camera's crew member, one that sends null — and the tally follows your cuts.

State: everything a button can show

GET /api/control/state
GET /api/control/state?stage=Main%20Stage

One request rather than five, because a desk polls this a second at a time all night. It answers with the event name, who is on air (by id and by name), how many crew are online, whether voice is configured and what the crew's own devices said about it, the channels a message could go to, and the running order per stage:

{
  "event": "Test Event",
  "onAir": { "userId": "…", "name": "Dev Okafor", "since": 1770000000000 },
  "crew": { "online": 14, "total": 22 },
  "runningOrder": {
    "known": true,
    "stages": [
      {
        "stage": "Main Stage",
        "onNow": { "name": "The Fixture", "endsIn": 60, "ends": "in 1h" },
        "next": { "name": "Night Bus", "startsIn": 120, "starts": "in 2h" }
      }
    ]
  }
}

Each act comes with the numbers and the same thing in words, so a button can print starts without doing any arithmetic of its own.

Two details worth knowing:

Messages: telling the crew something from the desk

POST /api/control/message   { "channel": "general", "body": "Changeover started" }

The channel is named the way it is written down — general, #general, or an id. It lands as a system message, in the same voice as "#foh created", because a machine posting under a crew member's name is a machine putting words in somebody's mouth on a comms channel.

Public channels only. A key sitting in a desk config file can never write into a DM.

Setting it up in Companion

Companion's Generic: HTTP requests module covers all of this — there is no crewbox module to install.

Check the URL and the key once with curl before building the page. A mistyped key answers 401 and a mistyped host answers nothing, and telling those two apart at a desk mid-show is nobody's idea of an evening.

If the box is serving HTTPS with its own certificate, the desk machine needs to trust that certificate — see HTTPS, names and certificates. A desk that cannot verify it will fail every call with a TLS error, not a 401.

Limits
