Running the box

The box is one program on one machine — a laptop is fine — serving everything: the app, the files, the history, the voice server. This page takes you from download to crew scanning the QR; nothing here needs internet at the venue.

Install and run

curl -fsSL https://crewbox.letissier.ie/install.sh | sh

Downloads the right binary, clears the macOS quarantine flag, starts it.

First run: four questions

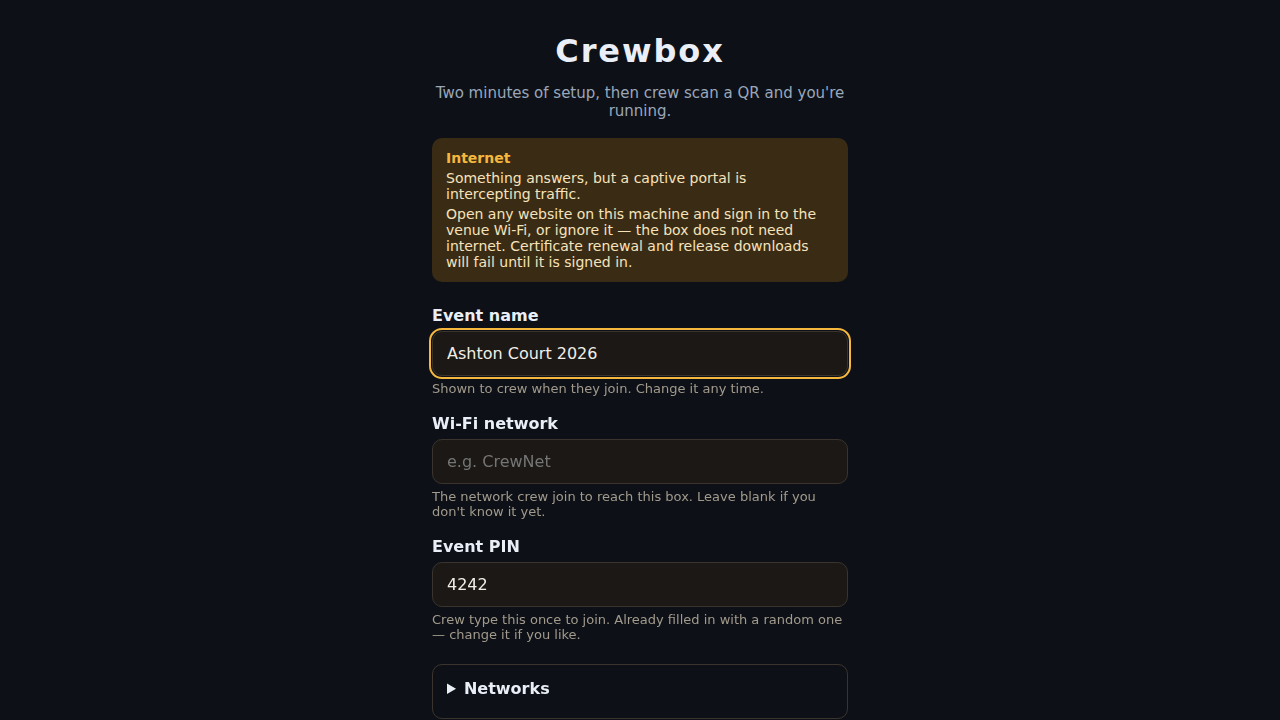

The /setup page and its four questions

The box opens a browser on /setup:

  1. Event name — what crew see when they join. Changeable any time.
  2. Wi-Fi network — the network crew join to reach the box, shown as join guidance. Leave blank if you don't know yet. Type it exactly: the iPhone app listens for alerts on the network with this name.
  3. Event PIN — pre-filled with a freshly minted one; keep or change.
  4. Admin password — also minted for you, shown this once.

Write the admin password down now. It is never shown again, and the setup page closes forever the moment the first person joins. If it's lost, get back in from the box itself: Open the admin panel in the Crewbox menu, or crewbox --admin (below).

A Networks section appears when the machine has more than one network adapter — pick which side the crew are on, and whether to listen to a lighting network (why you'd want to). Everything else on the setup page is editable later in the admin panel; the network choices apply on the next start.

The noticeboard: /connect

Saving setup lands on /connect: the join QR (with the PIN already in it), the join URL as a tappable link, the PIN in print, and — once you've put the Android app on the box — a download link for it. Leave it on a spare screen, or print poster versions. Crew scan, pick a name, done.

The QR also names the event and carries its key, so the phone apps check that the box at its address is this one before a PIN goes to it; a phone's own camera ignores them. That makes it a denser code than the address alone: print it from /connect at the size the page draws it or bigger. Posters printed before this version still work, without the check. Print them again when the event starts afresh on another box (below).

The box's own terminal prints the same thing, QR included, for headless machines.

Day to day

crewbox --status   # is it running, on what address, with which PIN
crewbox --admin    # a link that opens the admin panel once, no password
crewbox --stop     # stop it — works over SSH, works headless

Open the admin panel opens the panel already unlocked, so a lost admin password is never the end: get in, then set a new one under Admin → This box. Each link works once, and only someone logged in on the box can get one — the menu and --admin read it from the box's data directory, which nobody on the network can. From another device, run crewbox --admin on the box (over SSH, say) and open the second link it prints. Setting the ADMIN_PASSWORD environment variable and restarting still works too, and overrides the stored password for as long as it is set.

A second copy of the box refuses to start while one is running — it can't steal the port or hurt the live one. Stop the old one first (--stop), including when upgrading: running programs can't be overwritten.

Serving the Android app

Drop the crewbox-*.apk file into the box's data directory (~/.crewbox/ data) and it's served at /crewbox.apk — the /connect page starts offering it automatically. The URL never changes, so printed posters stay valid across versions.

Data, backup, updates

Everything lives in ~/.crewbox/data — one directory to back up, one to restore. The box backs itself up every 6 hours, ten minutes after it starts and then on the clock: a WAL-safe database snapshot, the uploads, the certificate and the Android APK. Choose where under Admin → Backups: until you do, backups go to the data folder's own backups, which a dead disk takes with it, so point it at a USB stick. Back up now takes one there and then, and Admin → This box shows a Backup row saying how long ago the last one was. Admin → Box settings → Back up every changes the interval (0 for none on a timer). A rig installed from source can still run deploy/backup.sh, which writes the same thing.

To restore one by hand, on any platform: quit Crewbox, rename its data folder out of the way, make a new empty one, copy everything inside the newest backup folder into it, and start Crewbox again. deploy/restore.sh goes the other way, onto the spare: it picks the newest backup that actually finished and whose database reads, and passes over — out loud — any that does not. A spare restored from a backup is the same event to every phone, and they carry straight on: the backup carries the event's ID and the box's signing key with everything else. At another address, phones check that key before they follow the event there: put the spare on the old address, or tell crew the new one to type. A box behind a port forward can't be checked, and phones take its typed address at the crew member's word, and a QR shown at the forward's address names no event, so phones join from it the same way; one restored from a backup older than its key fails the check, and phones say so and send it nothing. One started with a fresh database is a new event: phones say the box has changed and send it nothing, and the phone apps refuse the old event's posters there, so print its own from /connect. When it takes over from the event's box, say so in Admin → This box → Carries on another event, and each phone that has the event, once it has joined, offers to bring its documents, running order and unsent messages across (what crew see). The chat history is only in a backup. Updating the box is: stop it, replace the binary (or app), start it. Crew phones notice the new version and offer a Reload pill; nothing they had queued is lost.
